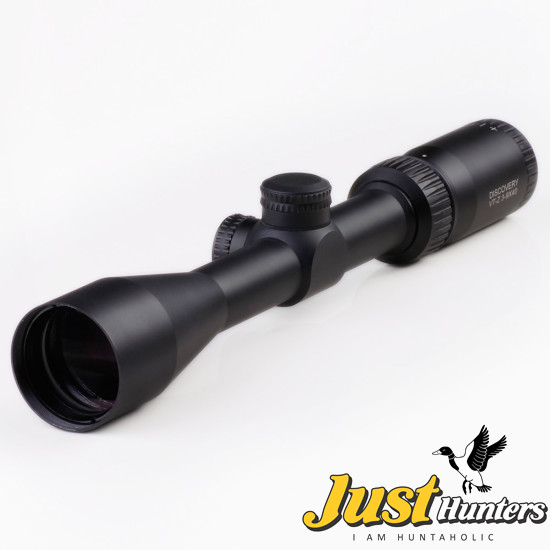

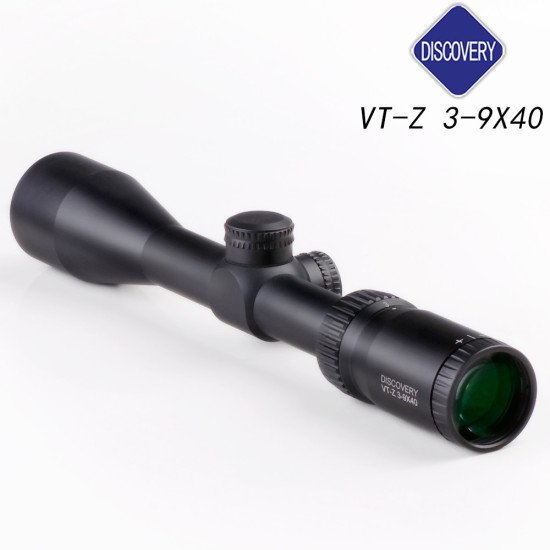

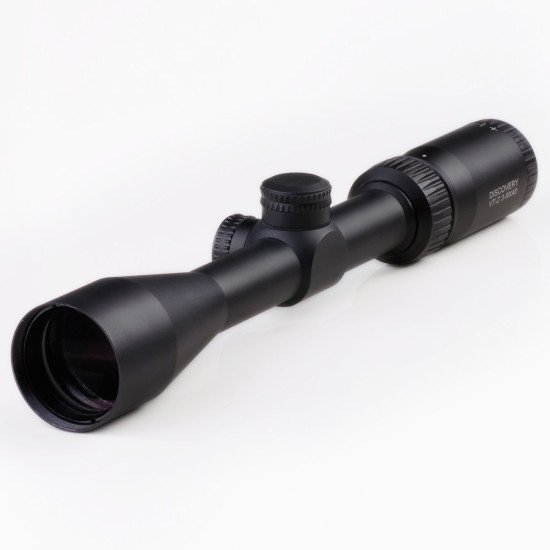

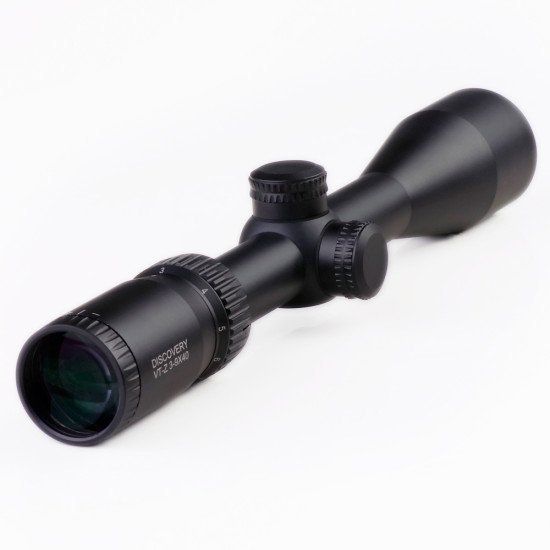

DISCOVERY Optics Scope VT-Z 3-9X40 Long Eye Relief

DISCOVERY Optics Scope VT-Z 3-9X40 Long Eye Relief

DISCOVERY Optics Scope VT-Z 3-9X40 Long Eye Relief

Specification

  • Magnification: 3X-9X
  • Length:320mm (12.6 in)
  • Weight(net): 14.46 oz /410 g
  • Objective Lens Diameter :40mm
  • Ocular Lens Diameter :35m
  • Tube Diameter: 1 in(25.4mm)
  • Focal Plane: Second Focal Plane
  • Parallax:  NO
  • Filed Of View @ 100 yds (ft): 31.5-10.3
  • Eye Relief (in): 3.15-3.94
  • Eye Relief (mm): 80-100
  • Exit Pupil(in): 0.52-0.12
  • Exit Pupil(mm): 13.3-3

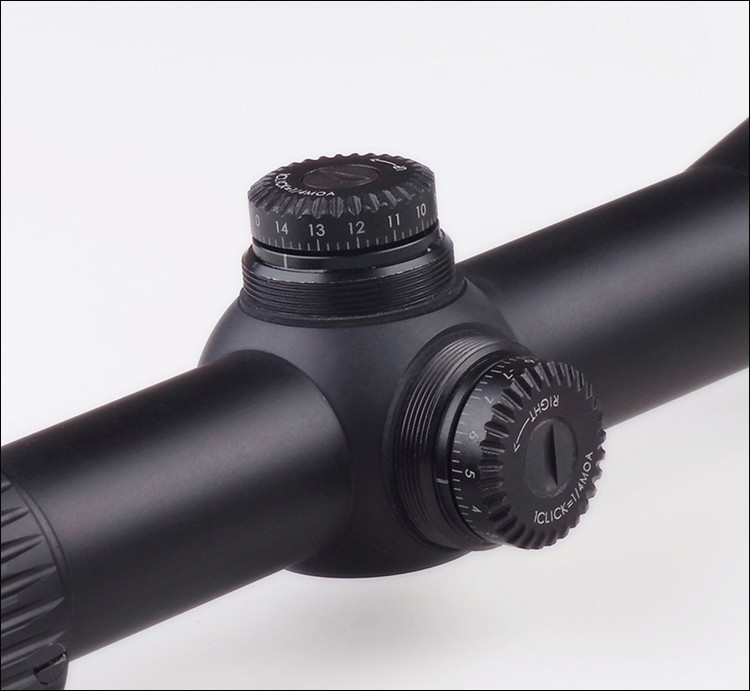

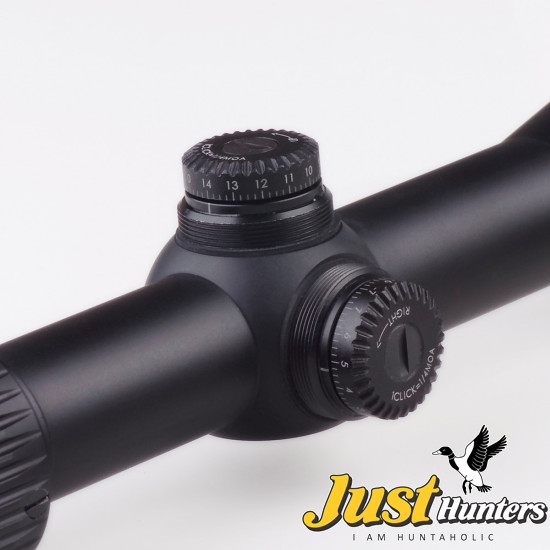

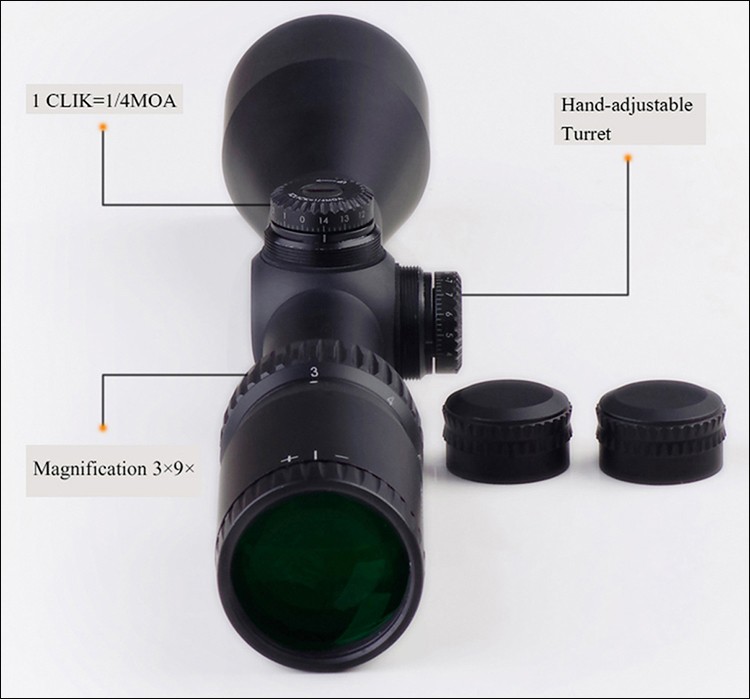

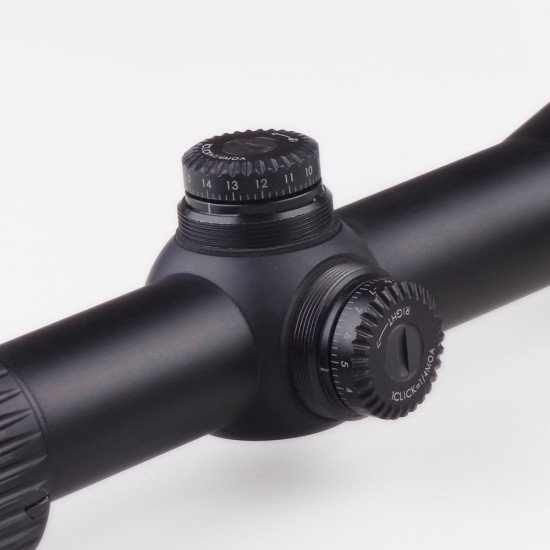

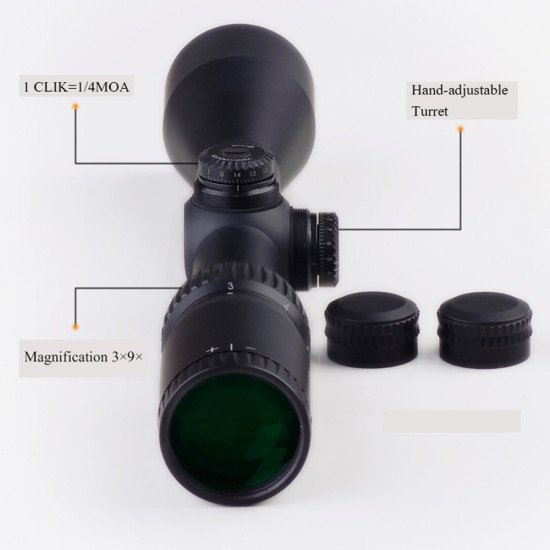

  • Click Value: 1CLIK= 1/4MOA
  • Elevation Adj. Range (MOA): 70
  • Windage Adj. Range (MOA): 70
  • Illuminated: NO
  • Coating: Fully Multi-green Coated Optics
  • Shock-Proof: YES
  • Water-Proof: YES
  • Fog-Proof: YES



Package

  1. Discovery VT-Z 3-9X40  *1
  2. Anti-dust cover *1

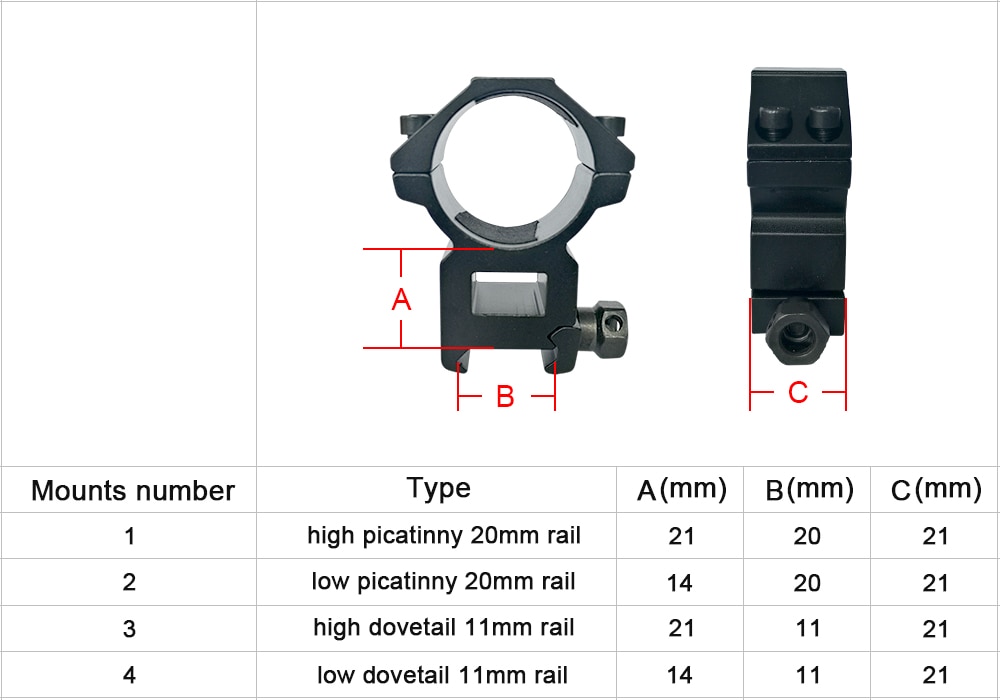

  3. A free pair of scope mount

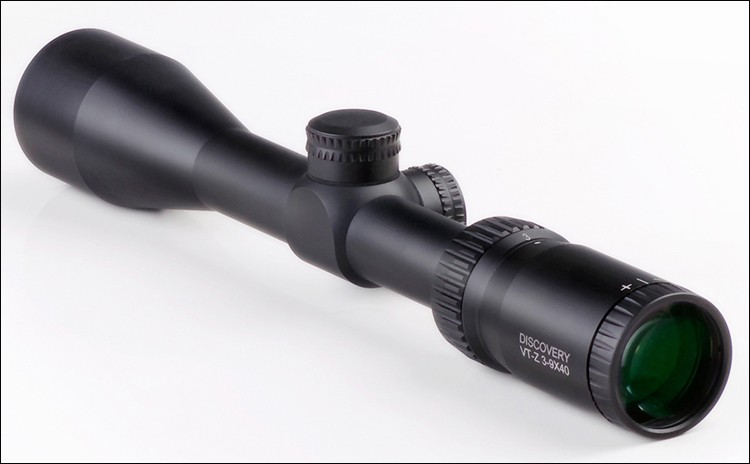

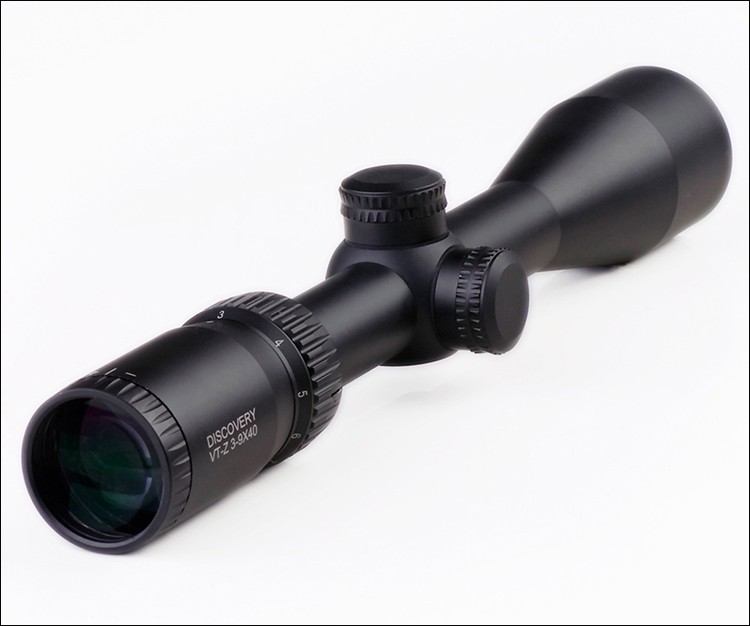

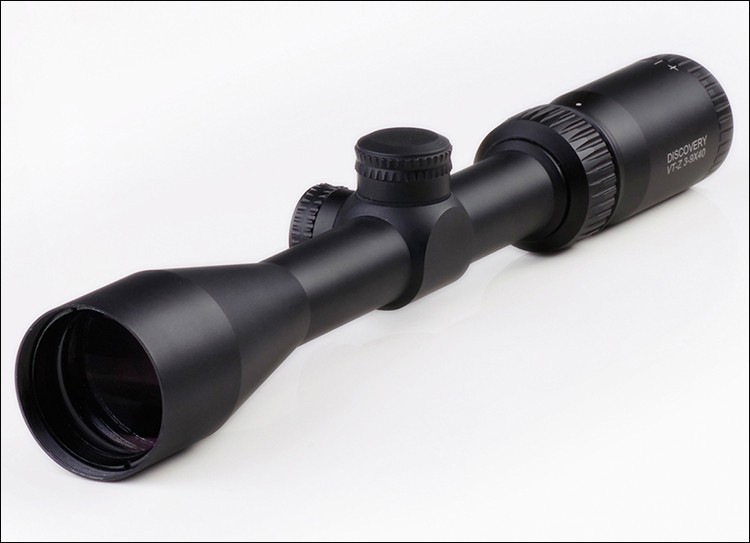

Detail Pictures

DISCOVERY-Jacht-Riflescope-VT-Z-3-9X40-Lange-Eye-Relief-Riflescope-Mildot-Richtk

DISCOVERY-Jacht-Riflescope-VT-Z-3-9X40-Lange-Eye-Relief-Riflescope-Mildot-Richtk

DISCOVERY-Jacht-Riflescope-VT-Z-3-9X40-Lange-Eye-Relief-Riflescope-Mildot-Richtk

DISCOVERY-Jacht-Riflescope-VT-Z-3-9X40-Lange-Eye-Relief-Riflescope-Mildot-Richtk

DISCOVERY-Jacht-Riflescope-VT-Z-3-9X40-Lange-Eye-Relief-Riflescope-Mildot-Richtk

DISCOVERY-Jacht-Riflescope-VT-Z-3-9X40-Lange-Eye-Relief-Riflescope-Mildot-Richtk

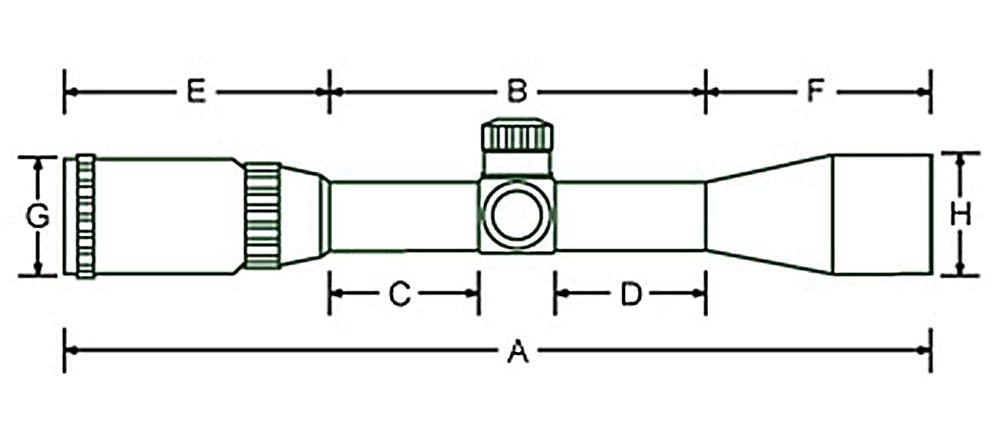

A:31.7cm  B:15.6cm  C:5.7cm  D:6.8cm  E:8.8cm  F:7.3cm  G:4.4cm  H:4.7cm



DISCOVERY-Jacht-Riflescope-VT-Z-3-9X40-Lange-Eye-Relief-Riflescope-Mildot-RichtkDISCOVERY-Jacht-Riflescope-VT-Z-3-9X40-Lange-Eye-Relief-Riflescope-Mildot-Richtk









    Specifications
    Focal PlanSFP
